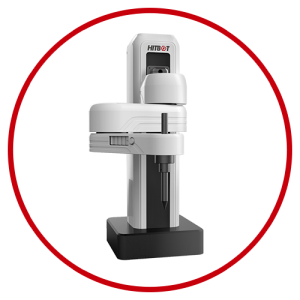

SCARA ROBOTIC ARMS – Z-Arm-1632 Collaborative Robotic Arm
Main Category
Industrial robot arm /Collaborative robot arm / Electric gripper/Intelligent actuator/Automation solutions
Application
SCIC Z-Arm cobots with its high automation & sound precision, can free workers from repetitive and fatigue work in various industries and applications, including but not limited to:
- Assembly: screwdriving, part insertion, spot welding, soldering, etc.
- Materials handling: pick and place, grinding, drilling, etc.
- Dispensing: gluing, sealing, painting, etc.
- Inspection and testing, as well as school education.
SCIC Z-Arm cobots are lightweight 4-axis collaborative robots with drive motor built inside, and no longer require reducers like other traditional scara, reducing the cost by 40%. Z-Arm cobots can realize functions including but not limited to 3D printing, material handling, welding, and laser engraving. It is capable of greatly improving the efficiency and flexibility of your work and production.
Features
Collaborative Robotic Arm
Leading light collaborative robotic arm provider
Human-robot collaboration Auto mated upgrade system
Less Volume, More Accuracy
Be able to work in narrow place and act flexible.
Simple Operation, Multiple Function
Handholding teach, easy-learning, secondary development supportive
Cheaper But Safer
High Precision
Repeatability
±0.02mm
High Speed
1017mm/s
Wide Range of Motion
J1 axis+90°
J2 axis+143°
Z axis stroke 160mm
Rotation range of R axis +1080°
Ultrahigh Performance to cost ratio
Industrial quality affordable price
Collaboration
Safety-related monitored stop
Communication Mode
Wi-fi Ethernet
Application Show
Circuit board welding
Screw driving
Dispensing
Pick and place
3D Printing
Laser engraving
Goods sorting
Related Products
Specification Parameter
|
Parameter |
Model |
||
|
Z-Arm 1632 Collaborative |
|||
|
Basic Information |
J1-axis |
Arm length |
160mm |
|
Rotation angle |
±90° |
||
|
J2-axis |
Arm length |
160mm |
|
|
Rotation angle |
±143° |
||
|
Z-axis |
Stroke |
160mm |
|
|
R-axis |
Rotation angle |
±1080° |
|
|
Linear Velocity |
1017mm/s (500g payload) |
||
|
Repeatability |
±0.02mm |
||
|
Rated Payload |
0.5kg |
||
|
Maximum Payload |
1kg |
||
|
Degree of Freedom |
4 |
||
|
Power |
220V/110V 50~60Hz |
||
|
Adapter to 24V DC |
|||
|
Communication |
Wifi/Ethernet |
||
|
Extensibility |
The built-in motion controller, provides 24 I/O |
||
|
I/O Port |
Digital Input (isolated) |
9+3 |
|
|
Digital Output (isolated) |
9+3 |
||
|
Analog Input (4-20mA) |
/ |
||
|
Analog Output (4-20mA) |
/ |
||
|
Height |
490mm |
||
|
Weight |
11kg |
||
|
Base Installation Parameters |
Base Size |
200mm*200mm*8mm |
|
|
Mounting Hole Spacing |
160mm*160mm |
||
|
With 4 M5*12 screws |
|||
|
Safety-related Monítored Stop |
√ |
||
|
Handhold Teaching |
√ |
||
Range of Motion and Size
