News - General Introduction of SCARA cobots Used in Quality Inspection

SCARA (Selective Compliance Assembly Robot Arm) cobots are increasingly being used in quality inspection applications due to their precision, speed, and flexibility. Here are some key applications of SCARA cobots in quality inspection:

Key applications of SCARA cobots in quality inspection

1. Visual Inspection

- Defect Detection: SCARA cobots equipped with high-resolution cameras and machine vision systems can inspect products for defects such as scratches, cracks, or misalignments.

- Dimensional Accuracy: They can measure dimensions of parts to ensure they meet specified tolerances.

2. Surface Inspection

- Texture and Finish: SCARA cobots can be used to inspect the surface texture and finish of products, ensuring they meet quality standards.

- Coating Thickness: They can also measure the thickness of coatings or paints applied to surfaces.

3. Assembly Verification

- Component Presence: SCARA cobots can verify the presence and correct placement of components in an assembly.

- Torque and Force Measurement: They can be equipped with sensors to measure the torque and force applied during assembly, ensuring proper fastening.

4. Electrical Testing

- Continuity and Resistance: SCARA cobots can perform electrical tests such as continuity and resistance checks on PCBs and other electronic components.

- Functional Testing: They can also be used to perform functional tests on electronic devices to ensure they operate correctly.

5. Leak Testing

- Pressure Decay: SCARA cobots can be used to perform leak tests by measuring pressure decay in sealed components.

- Bubble Testing: They can also be used to detect leaks by submerging components in a liquid and looking for bubbles.

6. Laser Scanning

- 3D Scanning: SCARA cobots equipped with laser scanners can create 3D models of parts and compare them to CAD models to detect deviations.

- Profile Measurement: They can also measure the profile of parts to ensure they match the required specifications.

7. Sorting and Grading

- Quality Grading: SCARA cobots can sort products based on quality grades determined by inspection criteria.

- Defective Product Removal: They can also remove defective products from the production line.

8. Data Collection and Analysis

- Real-Time Monitoring: SCARA cobots can collect inspection data in real-time and feed it into a central system for analysis.

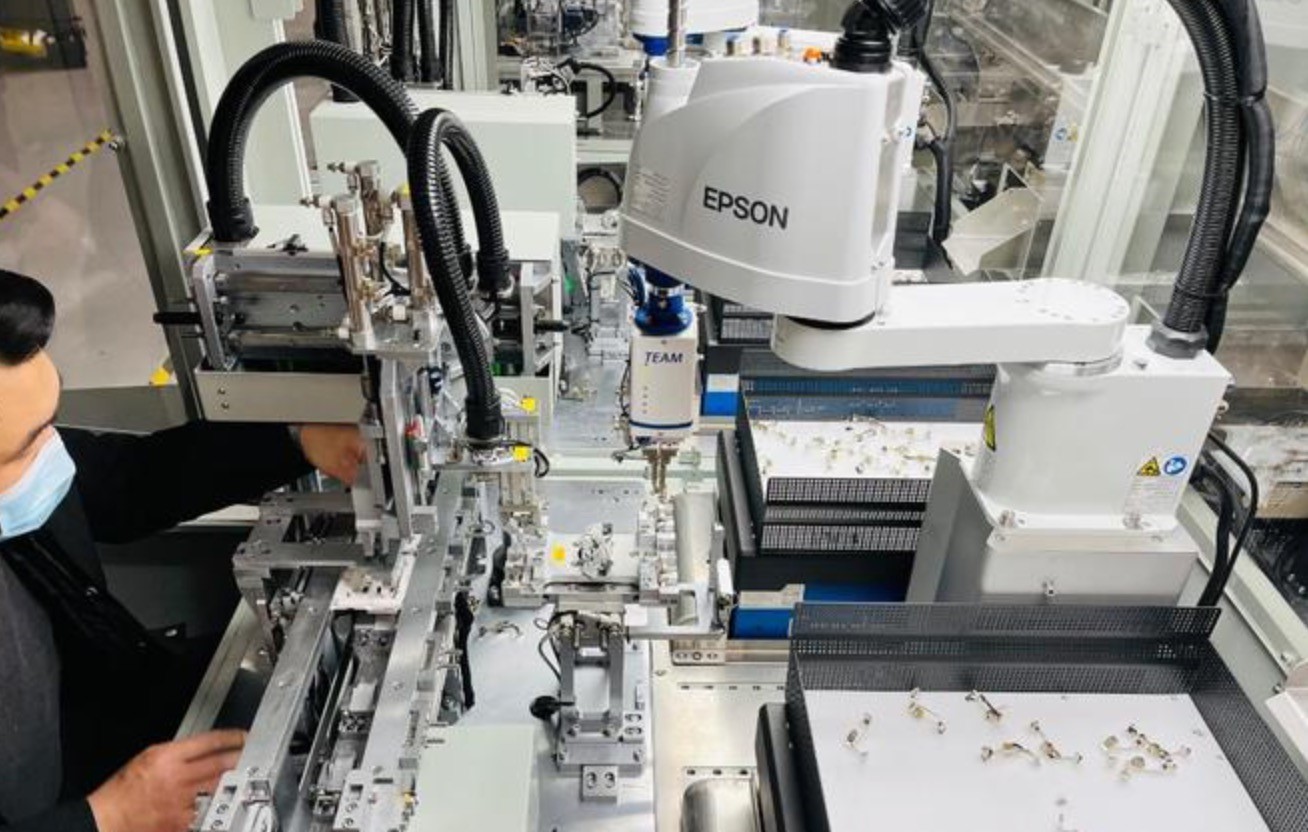

- Statistical Process Control (SPC): They can be integrated with SPC software to monitor and control the quality of the manufacturing process.

Advantages of Using SCARA Cobots in Quality Inspection:

- High Precision: SCARA cobots offer high repeatability and accuracy, essential for quality inspection tasks.

- Speed: They can perform inspections quickly, increasing throughput.

- Flexibility: SCARA cobots can be easily reprogrammed for different inspection tasks, making them versatile.

- Consistency: They provide consistent inspection results, reducing human error.

- Integration: SCARA cobots can be easily integrated into existing production lines and work alongside human operators.

Challenges during SCARA applications:

- Initial Setup: Setting up a SCARA cobot for quality inspection can require significant initial investment and expertise.

- Complexity: Some inspection tasks may require advanced programming and integration with other systems.

- Maintenance: Regular maintenance is required to ensure the cobot operates at peak performance.

Overall, SCARA cobots are a valuable tool in quality inspection, offering a combination of precision, speed, and flexibility that can significantly enhance the quality control process in manufacturing.

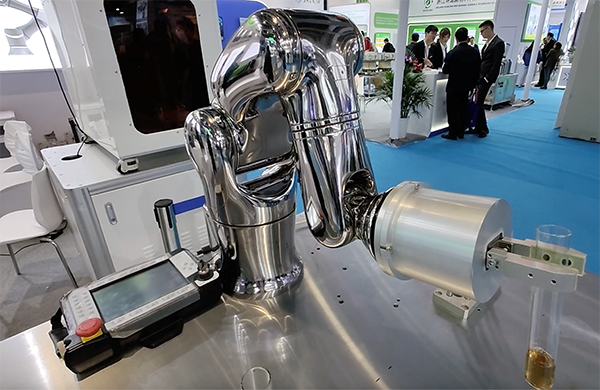

End-of-Arm Tooling (EOAT) is a critical component in SCARA cobot applications, especially in quality inspection tasks. The choice of EOAT depends on the specific inspection requirements, such as the type of inspection (visual, dimensional, surface, etc.), the nature of the product, and the environment. Below are some common EOAT types used in SCARA cobot quality inspection applications:

1. Vision Systems (Cameras and Sensors)

- High-Resolution Cameras: Used for visual inspection tasks like defect detection, component presence verification, and dimensional measurement.

- 3D Cameras: For capturing depth information and performing 3D scanning or profile measurements.

- Infrared (IR) Cameras: For thermal inspections or detecting heat-related defects.

- Laser Scanners: For precise 3D scanning, surface profiling, and dimensional accuracy checks.

2. Probes and Sensors

- Contact Probes: Used for tactile measurements, such as checking dimensions, surface roughness, or alignment.

- Force/Torque Sensors: For measuring applied force or torque during assembly verification or functional testing.

- Ultrasonic Sensors: For detecting internal defects or measuring material thickness.

- Laser Displacement Sensors: For non-contact measurement of distances, thicknesses, or surface profiles.

3. Grippers

- Vacuum Grippers: For handling delicate or flat-surfaced objects during inspection.

- Mechanical/electrical Grippers: For securely holding parts during inspection or sorting tasks.

- Magnetic Grippers: For handling ferromagnetic materials.

- Soft Grippers: For handling fragile or irregularly shaped objects without causing damage.

4. Specialized Inspection Tools

- Leak Testers: For pressure decay or bubble testing to detect leaks in sealed components.

- Electrical Test Probes: For continuity, resistance, or functional testing of electronic components.

- Surface Finish Sensors: For measuring surface texture, roughness, or coating thickness.

5. Laser Systems

- Laser Profilers: For creating 3D models of parts and comparing them to CAD designs.

- Laser Micrometers: For high-precision dimensional measurements.

- Laser Marking Systems: For marking defective parts or adding traceability information.

6. Illumination Systems

- LED Lights: Integrated with cameras to provide consistent lighting for visual inspections.

- Structured Light Projectors: For enhancing 3D scanning and surface inspection accuracy.

7. Custom Tooling

- Multi-Function Tools: Combining multiple EOAT types (e.g., a camera, gripper, and sensor) into a single tool for complex inspection tasks.

- Adaptive Tooling: Tools that can adjust their configuration based on the inspection requirements.

Factors Influencing EOAT Selection:

1. Inspection Type: The nature of the inspection (visual, tactile, dimensional, etc.) determines the appropriate EOAT.

2. Product Characteristics: Size, shape, weight, and material of the product being inspected.

3. Speed and Precision: High-speed inspections may require lightweight EOAT, while high-precision tasks may need advanced sensors.

4. Environment: Considerations like cleanroom requirements, exposure to dust or moisture, and temperature conditions.

5. Integration: Compatibility with the SCARA cobot and other systems (e.g., vision systems, PLCs).

Examples of EOAT in Quality Inspection Applications:

- PCB Inspection: Vision systems with high-resolution cameras and electrical test probes.

- Automotive Parts Inspection: Laser scanners for 3D profiling and force sensors for assembly verification.

- Medical Device Inspection: Soft grippers and ultrasonic sensors for handling and internal defect detection.

- Packaging Inspection: Vacuum grippers and LED-illuminated cameras for defect detection and sorting.

By selecting the appropriate EOAT, SCARA cobots can perform a wide range of quality inspection tasks with high accuracy, efficiency, and repeatability. The flexibility of EOAT also allows for easy adaptation to new inspection requirements, making SCARA cobots a versatile solution in manufacturing quality control.
